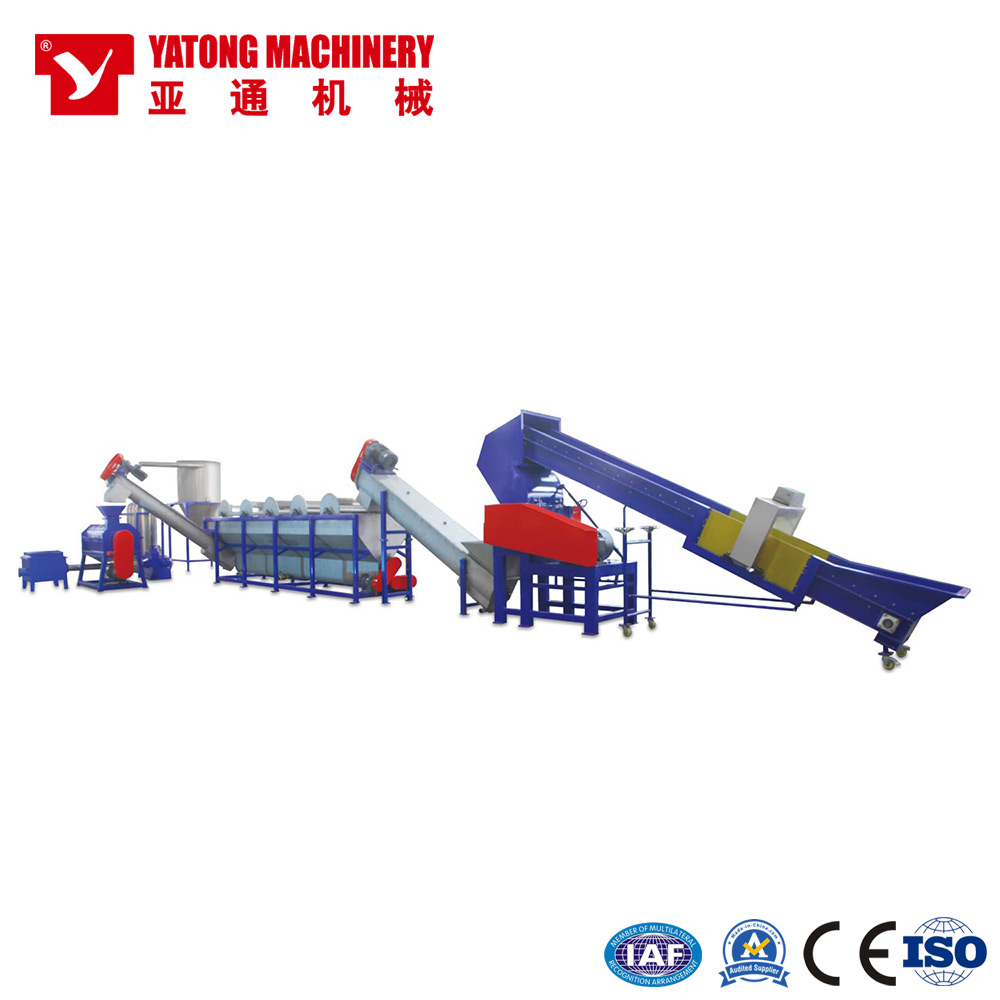

Yatong 1000kg/H PlasticPE Film hard flakes Washing Machine
Product Description
PE film washing equipment is an important step towards improving the environment and reducing carbon footprints. Our film washing machine is designed to recycle different kind of dirty films , like green house film , agriculture film , ground film , woven sack bag , etc. after washing , usually the material will go for further process-pelletizing and then the granule can be used to make different kinds of plastic products.
Working Process:
| Machine List | Function |
| Belt conveyor | Convey waste plastic into crusher |
| Crusher | With water, will cut waste plastic into small piece |
| Screw Conveyor | Convey small pieces |
| Floating Washing Tank | Separate PP PE and PET, dirty according to specific density |
| Screw Conveyor | Convey small pieces |
| high speed frication washer | Scrubbing material in high speed with water |
| Screw Conveyor | Convey small pieces |
| Dewatering Machine | High speed centrifuge drying |
| Drying System | Electric heating wind drying |
| silo | Store the final material |
| Electrical Control Panel | Adopts Siemens and Schneider as main component. |
Features :
a) Easy to opeating the machine
b) after washing the film is very clean to make granule
c) save power and need less worker
d) it is convenient to maintain the machine
Specification :
| Technical Parameter | Model | YT500KG | |
| Belt conveyor | Motor power | 2.2kw | |
| Length | 5-6m | ||
| Crusher | Motor power | 45kw | |
| Crushing chamber size | 1000mm*600mm | ||
| Rotation blades | 6pcs | ||
| Fixed blades | 4pcs | ||
| Blades material | 9Crsi | ||
| Crushing mesh size | Ø80mm | ||
| Capacity | 500kg/h | ||
| Friction washing machine | Motor power | 5.5kw | |
| Rotation speed | 500rpm | ||
| Length | 3000mm | ||
| Diameter | Ø250mm | ||
| Material | All elements contact with water is stainless steel | ||
| Floating washing tank | Tank length | 6000mm | |
| Floating motor | 2.2kw*2pcs | ||
| Discharge dirty motor | 1.5kw | ||
| Screw conveyor | Motor power | 2.2kw | |
| Diameter of main axis | Ø250mm | ||
| Capacity | 500kg/h | ||
| Film Dewatering machine | Motor power | 45kw | |
| Rotation speed | 1200rpm | ||
| Capacity | 300kg/h | ||
| Air blowing system with silo | Heating power | 60kw | |
| Air-inlet motor | 7.5kw | ||
| Air transportation pipe diameter | Ø219 | ||
| Silo volume | 1m3 | ||
Application : make PE PP granule then produce PE PP pipeREMARK : if the equipment or technological parameters have some change , we shall not make a notice separately .
Advantage :
1- lower power cost , need only one worker is enough to operate the machine
2- hight efficiency , less power consumption
3- High Capacity
Our Services
• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
