What is the structure of the PVC mixing machine?

PVC mixing machine is mainly suitable for all kinds of resins such as polyethylene, polypropylene, polyvinyl chloride and other ingredients, mixing, coloring, drying, and ABS, polycarbonate and other engineering plastics before molding, drying, devolatilization and other processes, can also be used Mixed with phenolic resin.

●What is the workflow of the PVC mixing machine?

●What are the optional configurations of the PVC mixing machine?

●What is the structure of the PVC mixing machine?

What is the workflow of the PVC mixing machine?

The PVC mixing machine combines the hot mixing and cold mixing processes, which can complete the hot mixing of the materials and automatically enter the cold mixing to cool them, remove the residual gas, and prevent agglomeration. PVC mixing machine has the characteristics of high degree of automation, good mixing effect, complete functions, compact structure and beautiful appearance. It is an ideal equipment for plastic mixing.

What are the optional configurations of the PVC mixing machine？

1. Material of PVC mixing machine: stainless steel 201, stainless steel 304, stainless steel 316 and other stainless steel, carbon steel, or other steel;

2. The opening method of the PVC mixing machine: manhole, cleaning port, dust removal port, feeding port, exhaust port, etc. can be customized;

3. The discharging device of PVC mixing machine: pneumatic, electric and manual are optional;

4. Ribbon structure of PVC mixing machine: bidirectional 180°, single item 180°, bidirectional 360°, single item 360°;

5. Seal of PVC mixing machine: mechanical seal, packing seal, combined air seal;

6. Adding configuration of PVC mixing machine: quantitative weighing and packaging, screw feeder, vacuum suction machine, powder suction machine, water adding device, dust removal and purification, etc.

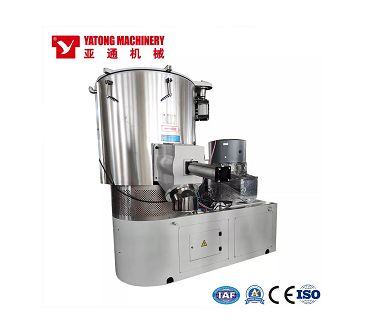

What is the structure of the PVC mixing machine?

The PVC mixing machine consists of seven parts: pot body, pot cover, transmission, base, lift, discharge port and electric control box. The pot body is welded by stainless steel, the inner surface is extremely smooth and hard, and has the characteristics of wear resistance, corrosion resistance, and not easy to stick to materials. There are heating jackets and resistance heating rings on the outer surface of the pot. The temperature is transferred to the pot body through the high ignition point heat-conducting oil in the heating jacket, so that the pot body is heated evenly, and the temperature of the materials in the pot can be controlled by adjusting the heating temperature. Outsourced with asbestos insulation. The wall of the cold mixing pot is high with a cooling jacket, and the cooling effect is achieved through the circulation of cooling water. The pot cover is made of aluminum alloy, and the inner surface is finely turned and polished. After the PVC mixing machine is lifted by the cylinder, it can rotate horizontally clockwise along the vertical rotation axis. It rotates briskly and is easy to use. There are holes for adding resin, plasticizer and stabilizer on the cover. Users can arrange it according to their own needs. The center is a ventilation hole.

Zhangjiagang YaTong Machinery Co., Ltd. has various PVC mixing machines that can provide the increasing of products, and make them more effective, reliable, and consistent.
