Product Description

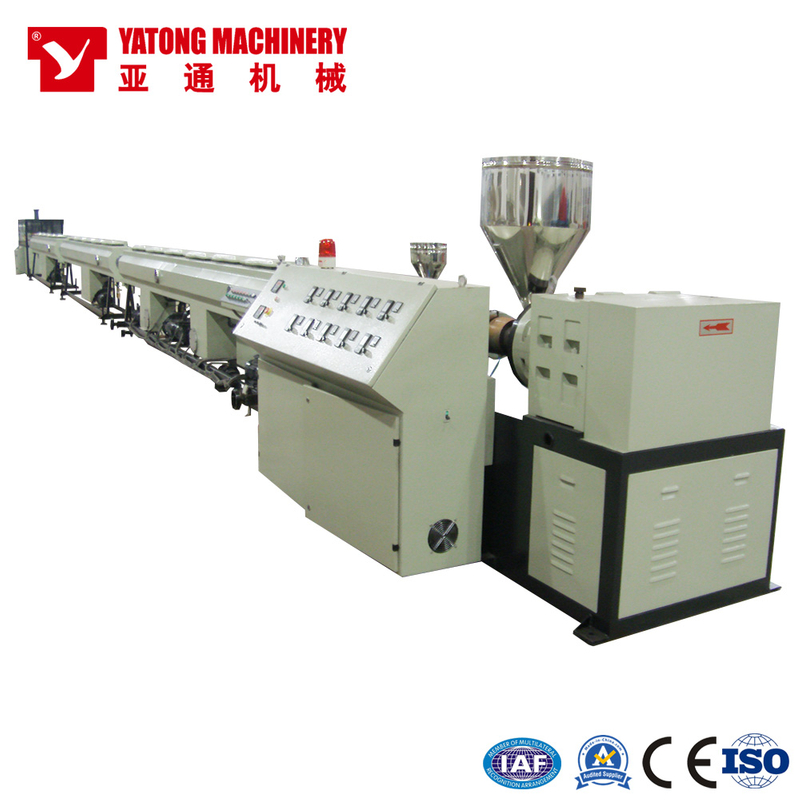

Yatong PPR Pipe Extrusion Line with PLC Control
♣ PPR/PE pipe production/extrusion line/PPR pipe making machinery is used to produce PPR/PE pipes for cold and hot water supply in house.
♣ It's composed of vacuum feeding machine, hopper dryer, single screw extruder, mould, make line co-extruder, vacuum calibration and cooling tank, extended spraying cooling tank, haul off machine, printer, cutter and stack bracket.
Process flow for PPR pipe extruding line
| 1 | Loading machine |
| 2 | Hopper drying machine |
| 3 | Single screw extruder |
| 4 | Co- extruder for color line |
| 5 | Vacuum tank |
| 6 | Cooling tank |
| 7 | Haul-off machine |
| 8 | Cutting machine |
| 9 | Stack stock |
| 10 | Mould |
Characteristic:
1.PLC control,high degree of automation.
2.Adopting special screw ,good effect.
3.Adopting compound spiral engine head,effectively deleting memory function of material.
4.Vacuum shaping,constant temperature control,eliminating pipe stress.
5.Adopting co-extrusion head to improve the tube with color line.
6.Heavy extrusion volume,low temperature of melt,equal temperature of melt.
7.Extensive material process range.
Technical Parameters:
| Model | Pipe diameter | Extruder | Vacuum calibration tank | Cooling tank | Haul-off | Cutter | ||||
| Vacuum pump | Water pump | Length(MM) | Water pump | Length(MM) | Catepiller | Motor | Cutting type | |||
| GF-63 | 16-63MM | SJ65/30 | 3KW | 3KW | 6000 | 4KW | 6000*2 | 2 | 3KW | Swarf-free cutting |
| GF-110 | 50-110MM | SJ75/33 | 4KW | 4KW | 6000 | 4KW | 6000*2 | 3 | 4KW | |
| GF-160 | 50-160MM | SJ90/33 | 5.5KW | 5.5KW | 6000 | 4KW | 6000*2 | 3 | 5.5KW | |
PPR/PP Pipe Application :
1 the hot and cold water systems, buildings, including the central heating system;
2, heating system inside the building, including floors, wall panels and radiant heating system;
3, pure drinking water supply system;
4, Central (Central) air conditioning systems;
5, transporting or piping systems for the chemical and other industrial emissions.
1- The machine inspection before delivery in YATONG MACHINERY When you come to our factory .Check everything is it ok .
2- Free of charge of some necessary spare part.
3- One year guaranteeof all the machines running , if any problem ,we will bear. Of course if the machines after one year ,you also can ask for the technical guidance.
4- 1-2 technical engineers will be come to your factory to installation and commissioning the machines and train your workers if you need.
5- We accept 30% TT down payment, 70% TT or LC at sight before delivery.
6- Film packing or plywood packing suit for sea shipping.
